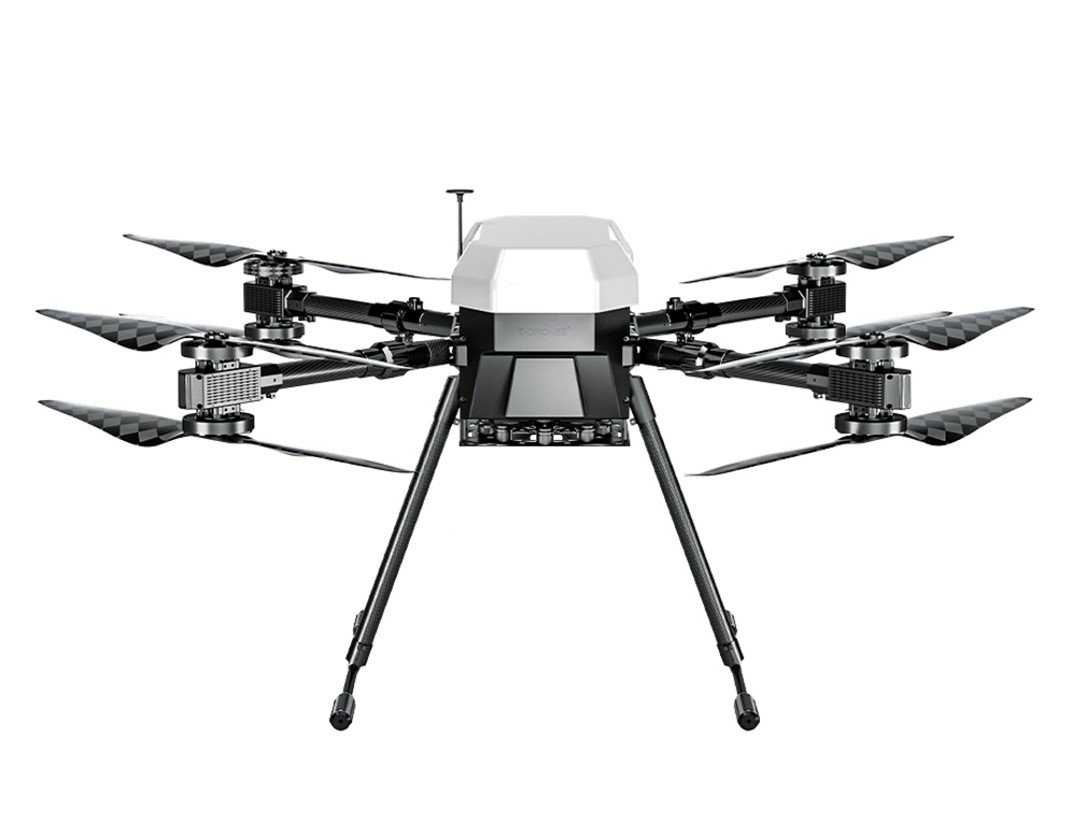

SKYEYE - Small size coaxial multi-rotor with remarkable load capacity
TECHNICAL SPECIFICATIONS
IP56 carbon fiber structure with foldable landing gear
Max. Payload: 9kg
Hover time: 3kg ≥ 49mins; 5kg ≥ 40mins; 9kg ≥ 24mins
Wheelbase: 860mm
Dimensions Folded: 433*413*250mm
Weight: 4.76kg (w/o battery), 9.96Kg (with battery)
PERFORMANCE
Max Take-off Weight:19.96Kg
Max Ascent speed: 5 m/s
Max Descending speed: 3 m/s
Max Horizontal Flight speed: 20 m/s
Flight time: Up to 40mins under normal conditions (5kg payload)
BASIC PACKAGE INCLUDES
Ground station:
• HD Video and Transmission System
• 7 inch FHD IPS Screen1080p 60fps FPV
Portable Backpack:
• Max Weight with drone 11kg
OPTIONAL PAYLOADS
• Two Dragonfltyer-60 can be attached.
• Revolving munition release system for either four (4) 60mm mortars or four (4) 60mm smart bomblets
• Camera payloads can be attached, included in the main brochure
Gimbal camera:
• 30x Hybrid Zoom
• 256Qx1440 HDR Night Vision
• 3-Axis stabiliser
